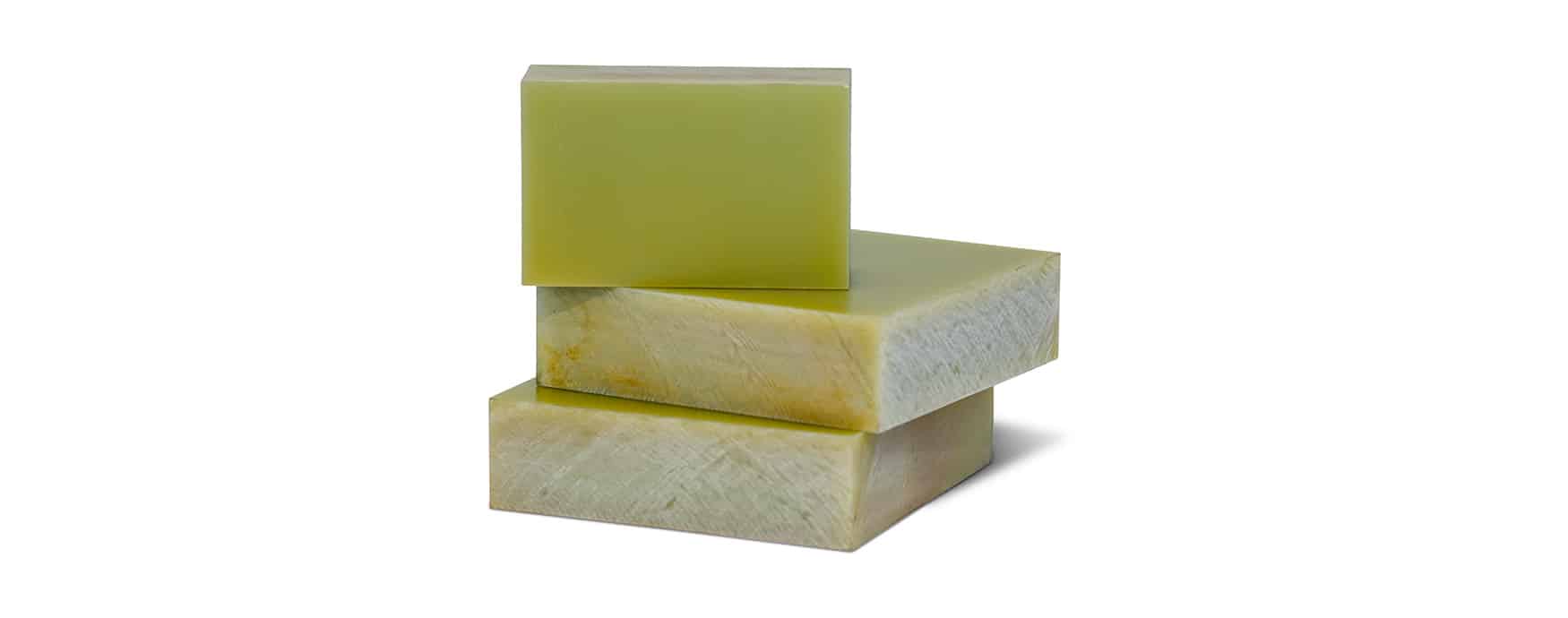

What is G-11?
G-11 is a glass thermoset industrial fiberglass-epoxy laminate available in yellow-green to amber in color. It is available in two classes: H and F. Class H G-11 material operates at 356° Fahrenheit whereas Class F operates at 302° Fahrenheit. Therefore, it is vital to use the right class in the appropriate applications.
G-11 is similar to G-10 but has greater insulating and temperature resistance, as well as exceptional mechanical strength and electrical insulation.
Notable G-11 properties include:
Tensile Strength — 63,000
Compressive Strength — 63,000
Specific Gravity — 1.82
Flexural Strength - LW - A 0.125” — 75,000 psi
Shear Strength — 22,000 psi
Bond Strength — 2,200 psi
Hardness - Mohs Scale — 112
Flammability Rating — 94HB
Izod Impact Strength at 49°C - LW — 12.00
Water Absorption (24 hours) — 0.20
Thermal Expansion Coefficient in Degrees Celsius (x10^-5) — 1.10
Maximum Operating Temperature — 356° Fahrenheit

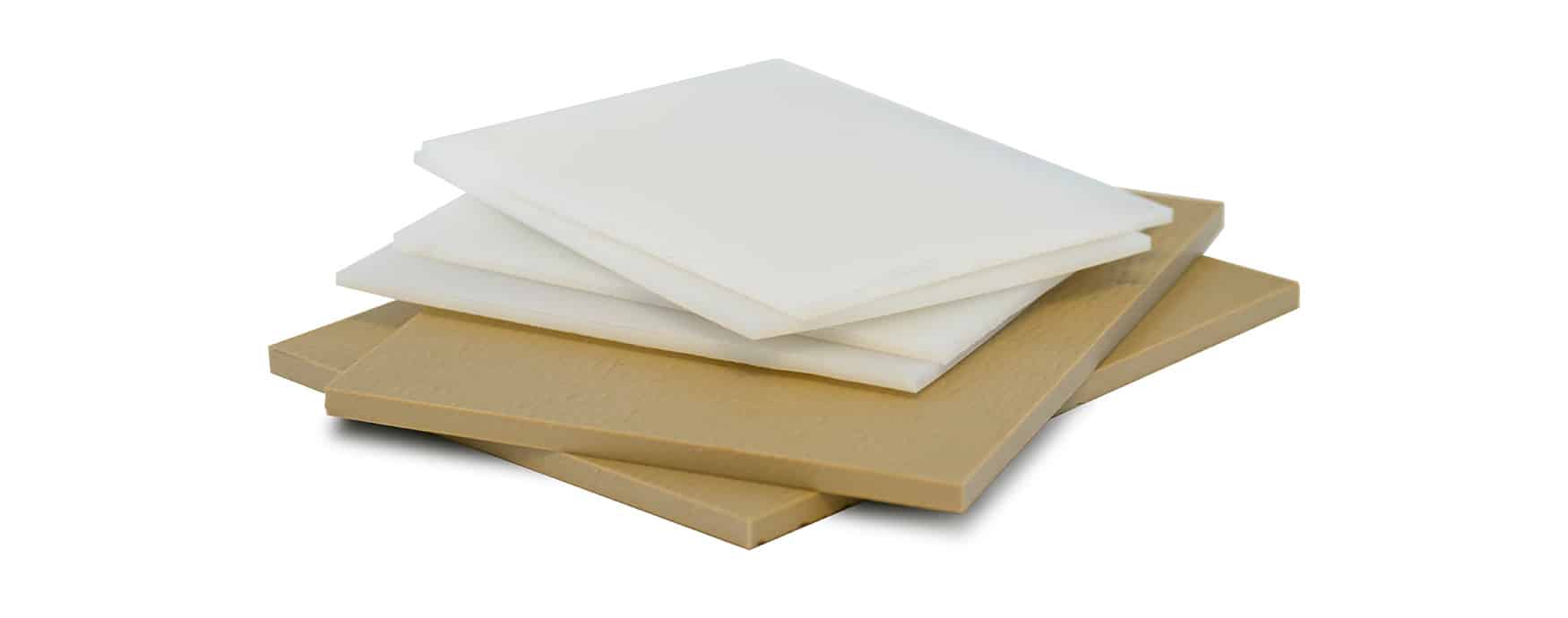

What forms of G-11 are available?
G-11 is available in various shapes and sizes, including:
• Sheets
• Tubes
• Rods
All forms can be used in projects requiring various dimensions, lengths, diameters and thicknesses. If you have specific project requirements, please contact us for a consultation. We will coordinate with you on the best shape and size specifications for your project.
What are the benefits of G-11?
There are many benefits of this epoxy material, such as:
- Low moisture absorption
- Dimensional stability
- High tensile strength and high flexural impact
- Chemical and radiation resistance
- Cryogenic serviceability
- Low cold flow and low dissipation factor
How is G-11 Used?
Why Choose Us for G-11 Epoxy Laminate Materials
At Aztec Plastic, we specialize in providing high-performance, custom injection molding solutions using G-11 epoxy laminate and other materials. Known for its superior mechanical strength and resistance to thermal stress, G-11 is ideal for demanding applications in industries where reliability and longevity are key.
We use state-of-the-art machinery and precision capabilities to deliver parts that meet your exact specifications. Whether you're working in industrial, aerospace, or electrical industries, our engineered solutions ensure your products maintain peak performance under extreme conditions.
Industries Served:
- Aerospace & Defense
- Industrial Equipment
- Electrical & Electronics
- Oil & Gas
- Heavy Machinery
