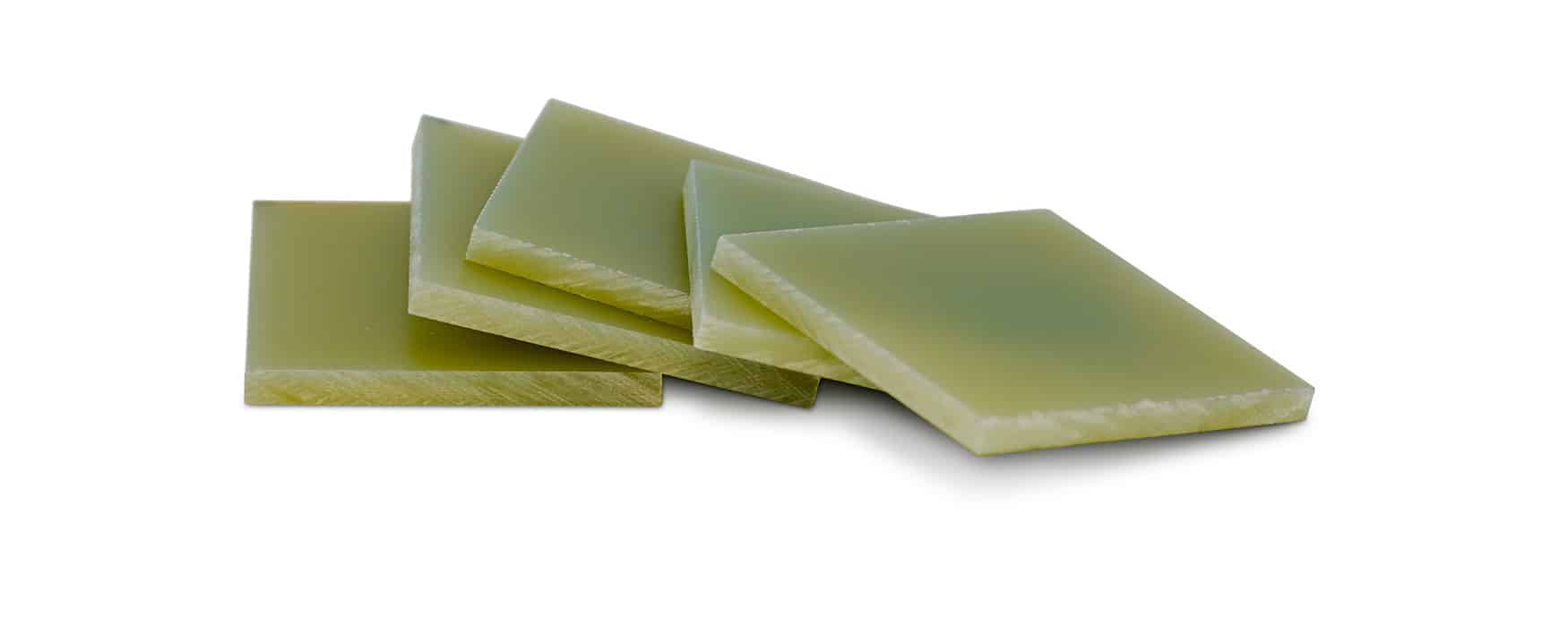

Fire-retardant FR-5 glass epoxy is perfect for dimensional stability and mechanical strength. It resists high temperatures and prevents flames or fires from spreading. Similar to G-11 glass epoxy, it also provides amazing electrical insulation.
FR-5 can be used for applications requiring G-11, but not inversely. G-11 may not be applicable for FR-5 requirements.
What is FR-5?
Like other glass epoxy materials, FR-5 contains a mix of glass-fiber and epoxy resin. In the same family as other FR materials, FR-5 offers thermal properties resisting high temperatures, flames, and fires. Additionally, it offers high tensile strength, low moisture absorption, and high impact strength.
FR-5’s material properties include:
Specific Gravity — 1.82
Tensile Strength — 63,000 pounds per square inch (psi)
Flexural Strength - LW - A 0.125” — 75,000 psi
Shear Strength — 22,000 psi
Bond Strength — 2,200 psi
Hardness - Mohs Scale — 112
Flammability Rating — 94HB
Izod Impact Strength at 49°C - LW — 12.00
Water Absorption (24 hours) — 0.20
Thermal Expansion Coefficient in Degrees Celsius (x10^-5) — 1.10
Maximum Operating Temperature — 356° Fahrenheit
What forms of FR-5 are available?
FR-5 composite materials are manufactured in various shapes and sizes, such as:
• Sheets
• Tubes
• Rods
All forms can be used in projects requiring various dimensions, lengths, diameters and thicknesses. If you have specific project requirements, don’t be afraid to get in touch for a consultation. Our experts will coordinate with you on the best shape and size specifications for your project.
What is the Difference Between FR-5 and FR-4?
Choose Aztec Plastic for FR-5 Manufactured Parts
For applications requiring superior flame resistance and electrical insulation, FR-5 glass epoxy is for you. It is one of the many materials we use to engineer high mechanical and dielectric strength solutions.
Our FR-5 solutions are ideal for the telecommunications, power distribution, and automotive industries, where safety and performance are paramount in high-voltage electrical and/or fire-resistant applications. With our precise molding capabilities, you can rely on us to deliver custom components that meet your most stringent requirements.
Industries Served:
- Power & Energy
- Telecommunications
- Automotive
- Consumer Electronics
- Electrical Systems
If your project demands high electrical resistance and low flammability, trust our experts to manufacture the ideal parts. Contact us today to discuss your project and our team will guide you through the process.
